Zirconia Oxygen Probe Technical Specifications

Flue gas temperature: 0-700℃

Flue gas pressure: -30KPa~+30KPa

Protection tube material: 316L stainless steel

Protection tube specifications: Φ 45mm

Transmitter material: cast aluminum

Display: LCD display Chinese menu

Instrument accuracy: 1%

Temperature control accuracy: ±1℃

Output: 4-20mA

Protection level: IP65

Power supply: 220V ±10%

Power: <150W

Range: 0-25% (programmable)

Service life: 1-5 years (according to actual working conditions)

Probe length: 500mm 800mm, 1000mm (other specifications can be customized)

TFZO-5/GD-LW Zirconia Oxygen Probe Application Field

Application areas include energy-consuming industries, such as iron and steel metallurgy, thermal power plants, petrochemicals, paper mills, food industry, textiles, and various combustion equipment, such as garbage burners, hazardous waste burners, and small and medium heating boilers Wait.

TFZO-5/GD-LW Zirconia Oxygen Probe Features

The flue gas does not directly contact the probe, and there is no erosion of the probe, and the service life is prolonged. The distance between the zirconium pool and the flue gas phase is about 100m, and there is a filter in between, which can minimize the corrosion impact of the flue gas on the zirconium pool. The flue gas only flushes the draft tube, not the probe at all. Even if the draft tube is worn through, only need to replace the draft tube, the probe can still be used.

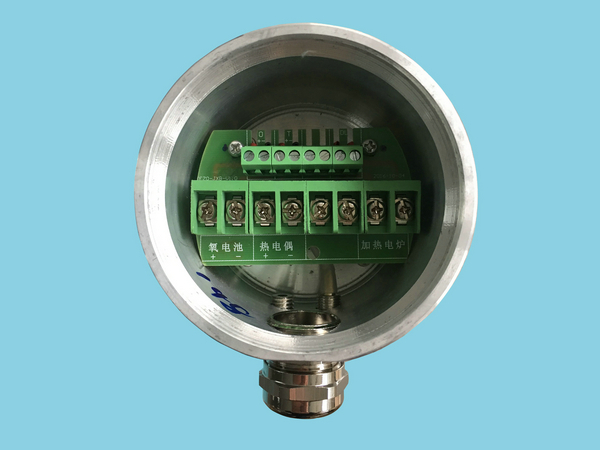

[Real shot of zirconia oxygen probe
